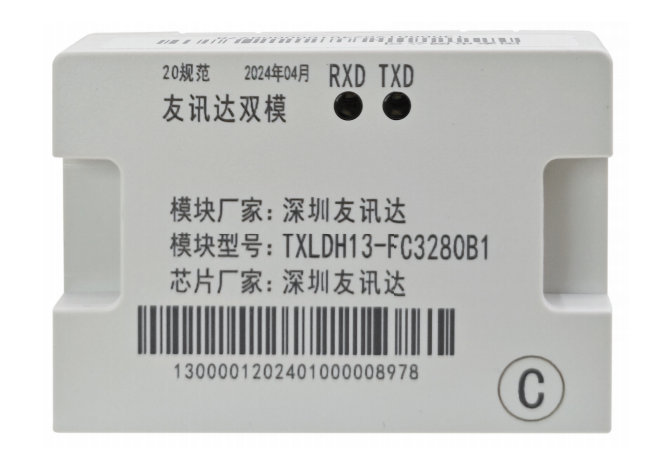

TXLDH13-FC3280B1 HPLC+HRF Hybrid Module

Overview

TXLDH13-FC3280B1 is an HPLC+HRF hybrid communication module produced by Shenzhen Friendcom, complying with IEEE 802.15.4g and IEEE P1901.3 standards.

Download

Features

  • Supports phase recognition function
  • Adopts HPLC+HRF hybrid communication mode with high-speed transmission
  • HPLC Features:
  • 1. Frequency band: 0.7–12 MHz
  • 2. Modulation mode: OFDM
  • RF Features:
  • 1. Optional frequency bands: 470~510MHz, 868MHz, customized sub-1G frequency bands
  • 2. Maximum data rate: 1000kbps
  • 3. Transmit power: <50 mW
  • 4. Receive sensitivity: -109dBm
Download

  • Specification Table

    Parameter

    Details

    Module Model

    TXLDH13-FC3280B1

    Communication Type

    HPLC+HRF Hybrid

    HPLC Frequency Band

    0.7–12 MHz

    HPLC Modulation

    OFDM

    RF Frequency Band

    470~510MHz, 868MHz, customizable sub-1G

    RF Max Data Rate

    1000kbps

    RF Tx Power

    <50 mW

    RF Rx Sensitivity

    -109dBm

    Compliance Standards

    IEEE 802.15.4g, IEEE P1901.3

    Core Function

    Phase recognition, high-speed hybrid communication
