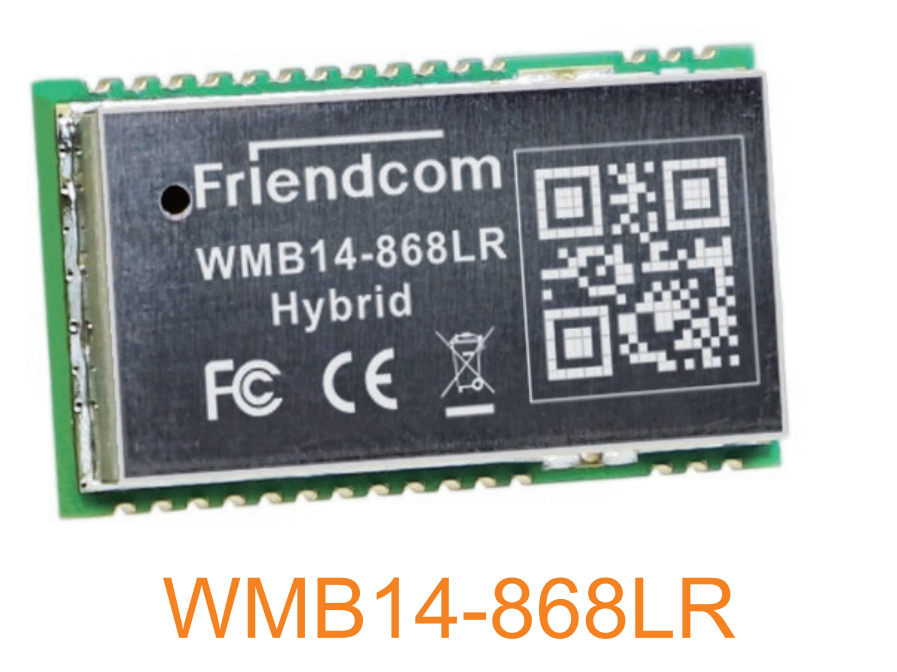

WMB14-868 LR Hybrid Module (Wireless M-Bus + LoRaWAN)

Overview

WMB14-868LR is a hybrid communication module under Friendcom's communication module product line, integrating Wireless M-Bus and LoRaWAN dual communication modes. It meets multiple EU directives and communication standards, with AES128 encryption for data security.

Download

Features

  • · Built-in UART TTL interface for data transmission
  • · Wide low-voltage power supply range of 2.2V–3.6V
  • · Ultra-low power consumption: less than 2uA at 25°C
  • · Miniature compact dimension
  • · Supports multiple global frequency bands including EU868 (868.3 MHz–869.525 MHz), US915, AU915, IN865, AS923, KR920, RU864
  • · Adopts AES128 data encryption to ensure communication security
  • · Compliant with EU R&TTE directive, EN 13757-4 and OMS standards
Download

  • Specification Table

    Parameter

    Value

    Module Model

    WMB14-868LR

    Communication Mode

    Wireless M-Bus + LoRaWAN Hybrid

    Main Frequency Band

    868.3 MHz–869.525 MHz (EU868)

    Optional Global Bands

    EU868, US915, AU915, IN865, AS923, KR920, RU864

    Power Supply Voltage

    2.2V - 3.6V

    Static Power Consumption

    <2uA @25°C

    Dimension

    25.5mm × 14.2mm × 3.75mm

    Hardware Interface

    UART TTL

    Data Encryption

    AES128

    Compliance Standards

    EU R&TTE directive (EN 300 220, EN 301 489, EN 60950), EN 13757-4, OMS
