SEM400 Single Phase Post Payment Meter

Overview

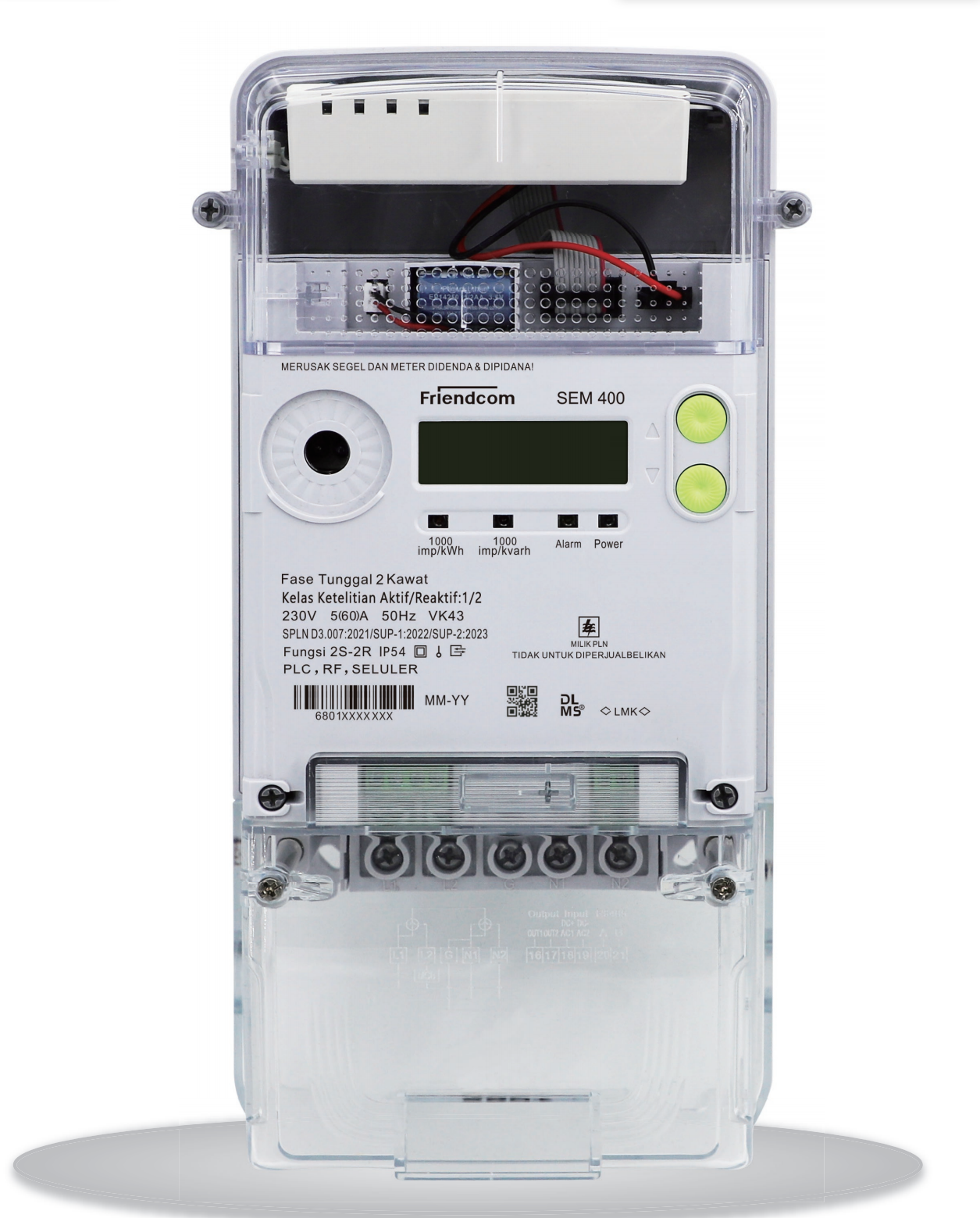

SEM400 single-phase post-payment meter belongs to Friendcom’s AMI Solution Products. It is developed in accordance with IEC62052-11, IEC62053-21/23 standards and adopts DLMS communication protocol, suitable for household electricity consumption and photovoltaic power settlement scenarios.

Download

Features

  • 1. Operates under post-payment mode
  • 2. Measures imported/exported active and reactive energy, supports four-quadrant reactive energy statistics
  • 3. Compatible with more than 5 tariff schedules
  • 4. Realizes phase and neutral line dual measurement, dual relay break/close control for phase and neutral
  • 5. Built-in harmonic measurement function and anti-tampering protection
  • 6. Equipped with infrared and RS485 communication interfaces
  • 7. Supports pluggable, interchangeable PLC, RF and cellular communication modules
  • 8. Adopts replaceable battery design
  • 9. High data security with DLMS security suite 0 and full DLMS protocol compliance
Download

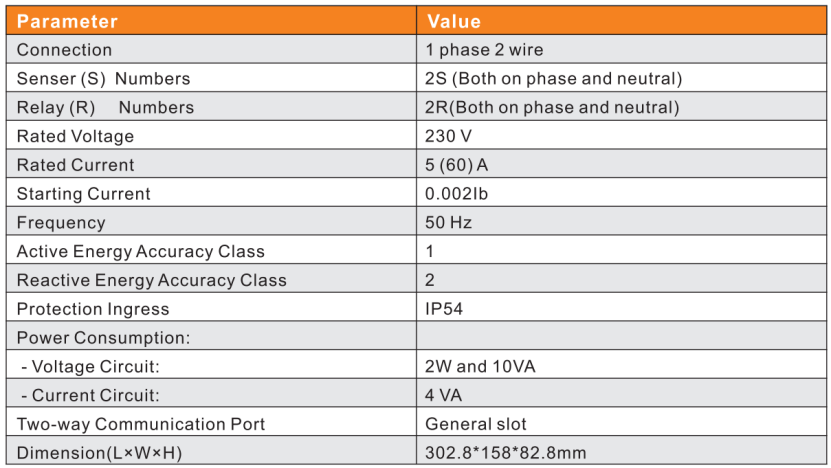

  • Specification Table
