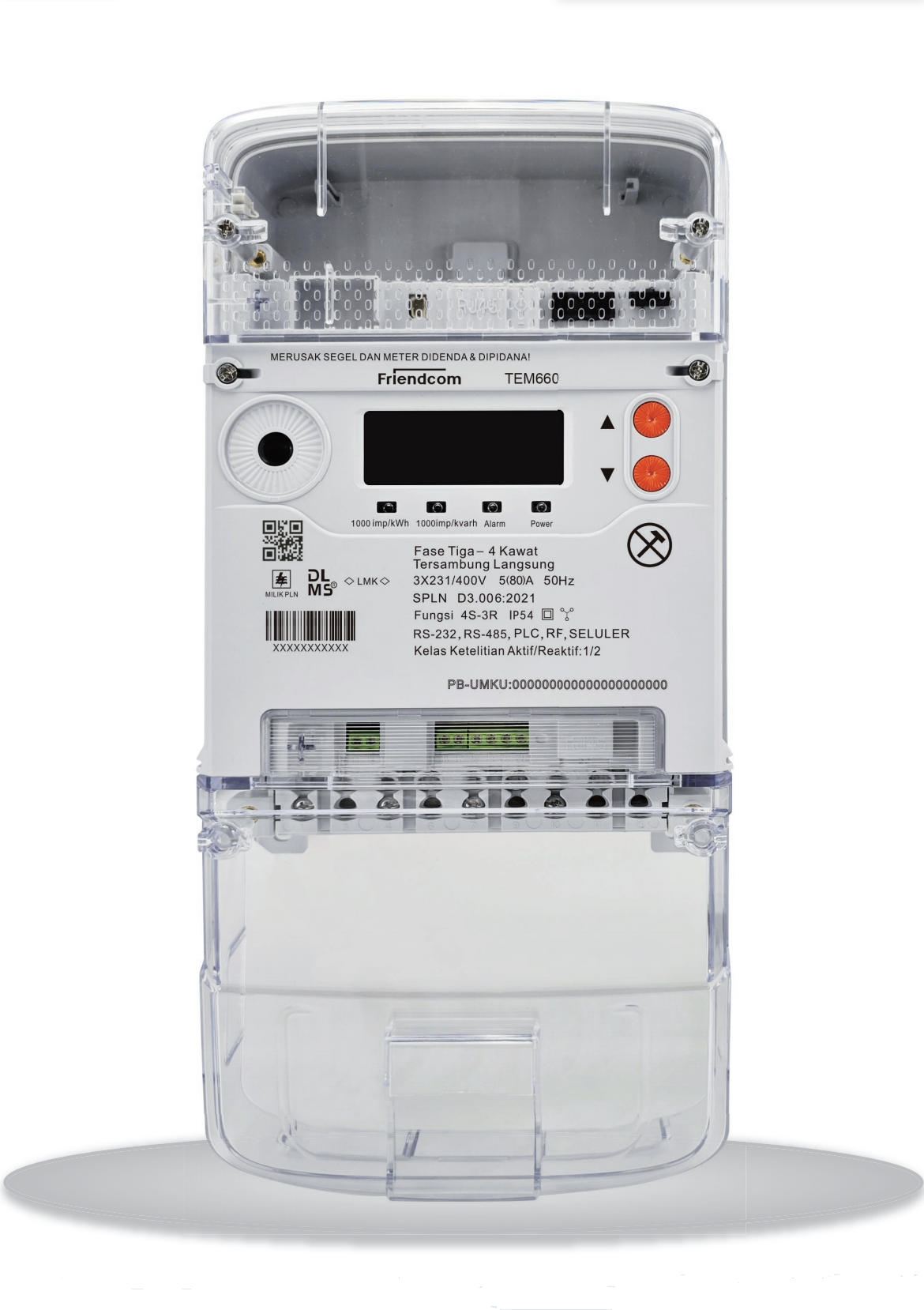

TEM660 Three Phase Smart Meter

Overview

Friendcom TEM660 is a three-phase smart energy meter under the brand’s AMI Solution Products series. It holds DLMS/COSEM certification with stable and high-precision performance. It supports plug-and-play PLC/RF/cellular communication modules, enabling remote meter management via HES.

Download

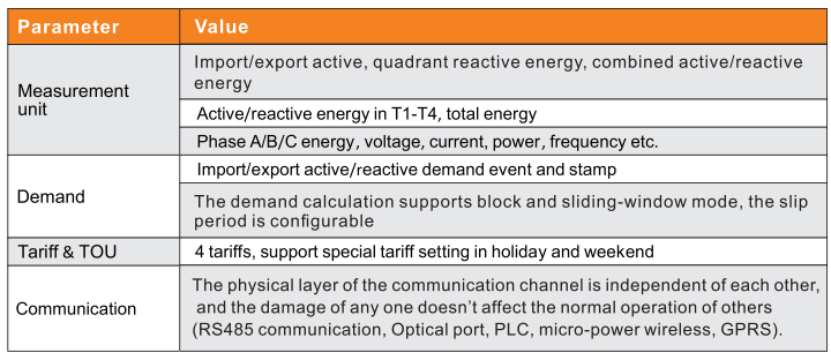

Features

  • 1. Measures import/export active energy, four-quadrant reactive energy, combined active & reactive energy; records T1-T4 and total active/reactive energy
  • 2. Monitors Phase A/B/C energy, voltage, current, power, frequency
  • 3. Tracks import/export active/reactive demand with timestamps; supports block and sliding-window demand calculation with configurable slip periods
  • 4. Equipped with 4 tariffs; allows customized special tariffs for holidays and weekends
  • 5. Independent physical communication channels including RS485, optical port, PLC, micro-power wireless, GPRS; single channel damage will not disrupt other channels’ operation.
Download

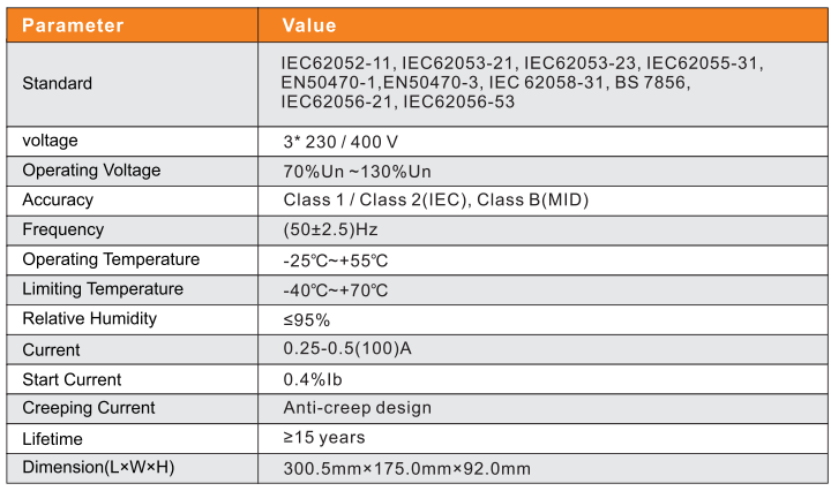

  • Specification Table
