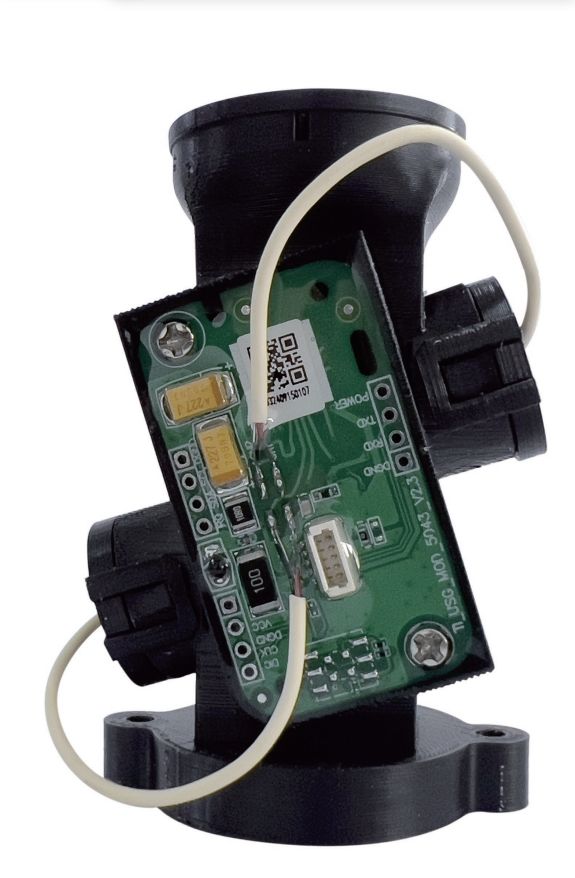

FC-722C-JME Ultrasonic Gas Metering Module

Overview

It is an ultrasonic gas metering module from Friendcom’s Ultrasonic Gas Metering Solution series. Developed in-house relying on nearly 10 years of ultrasonic technology accumulation and core technical breakthroughs, Friendcom holds independent intellectual property rights for this ultrasonic metering product. The module covers the G1.6–G2.5 gas meter measurement range, delivering stable full-range and full-temperature gas flow measurement for residential, industrial and commercial ultrasonic gas meters.

Download

Features

  • 1. Independently developed ultrasonic metering technology with proprietary intellectual property rights, backed by 10 years of technical accumulation
  • 2. Supports stable gas flow measurement across full flow ranges and full working temperature ranges
  • 3. Built-in temperature compensation function to ensure accurate measurement under varying temperatures
  • 4. Ultra-low power design: combined working current ≤30uA under long-cycle mixed flow conditions
  • 5. Wide applicable flow specifications covering G1.6M, G2.5M, G4M, G6M gas meter standards
  • 6. High precision metering with measurement level better than Class 1.5 and clear MPE error control standards
  • 7. Adopts UART communication interface for data interaction; compatible with 3.0V–3.6V external power supply
Download

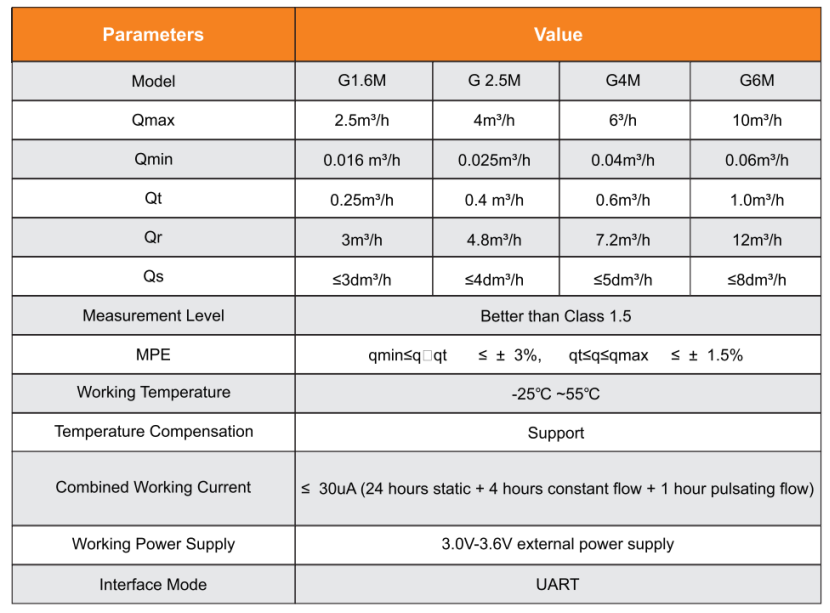

  • Specification Table
