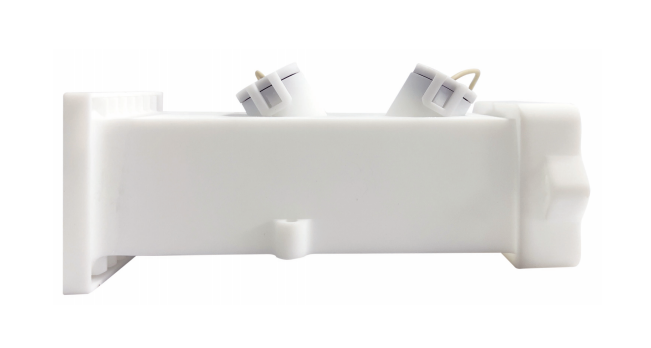

FC-730-JM Ultrasonic Gas Metering Module

Overview

FC-730-JM is an ultrasonic gas metering module under Friendcom’s Ultrasonic Gas Metering Solution, specially developed for commercial customers, covering the measurement range of G10 to G25 gas meters.

Download

Features

  • 1. Covers commercial gas meter specifications G10M, G16M, G25M (range G10–G25)
  • 2. High precision metering with measurement level better than Class 1.5 and standardized MPE error control
  • 3. Built-in temperature compensation to ensure stable measurement under varying temperatures
  • 4. Ultra-low power consumption: combined working current ≤30uA under mixed flow operating cycle
  • 5. Supports 3.0V–3.6V external power supply
  • 6. Equipped with UART interface for data communication
Download

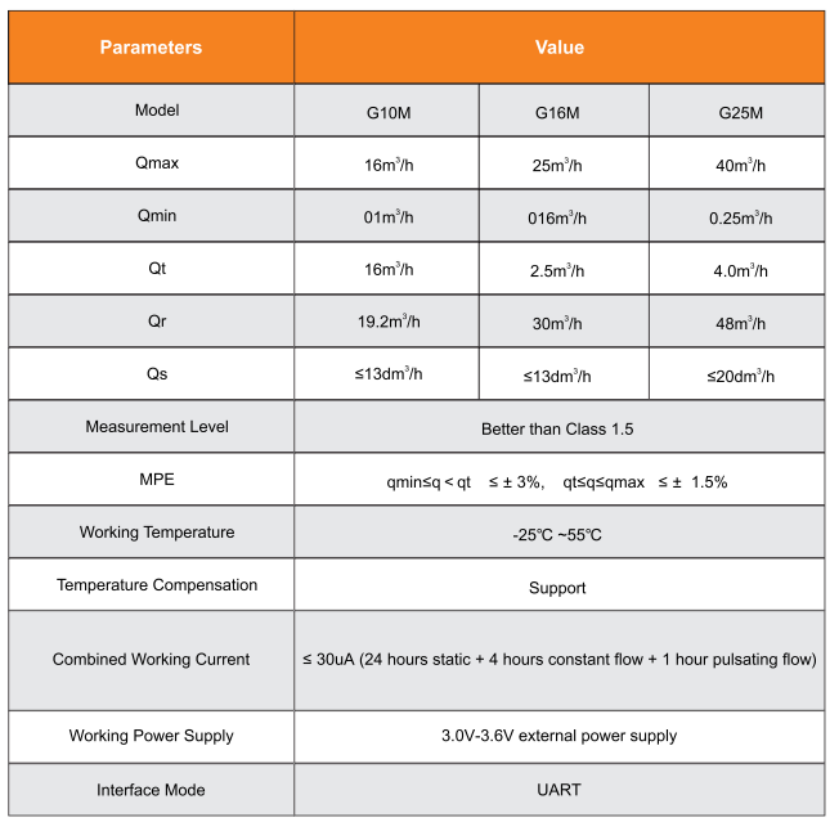

  • Specifaction Table
