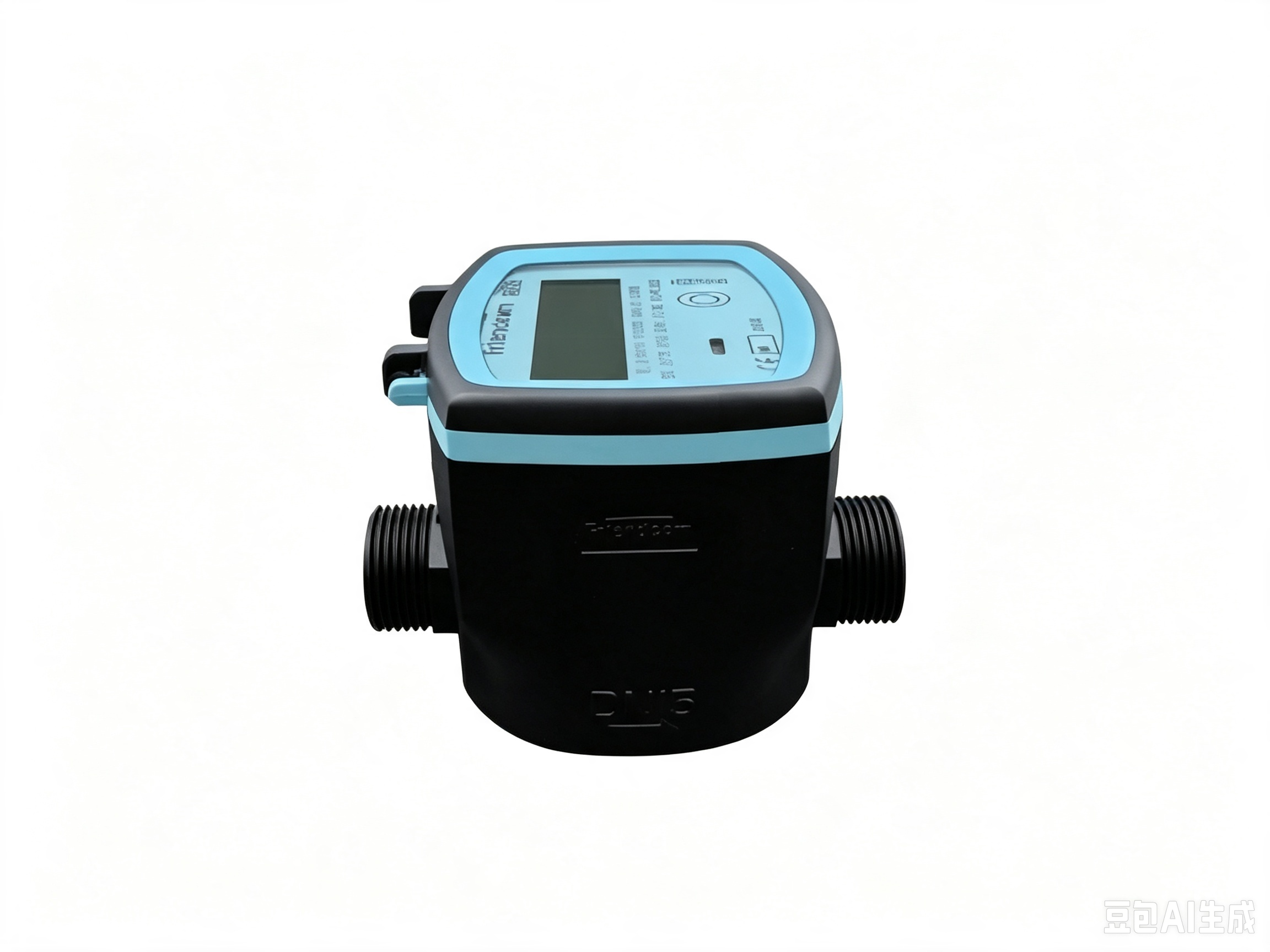

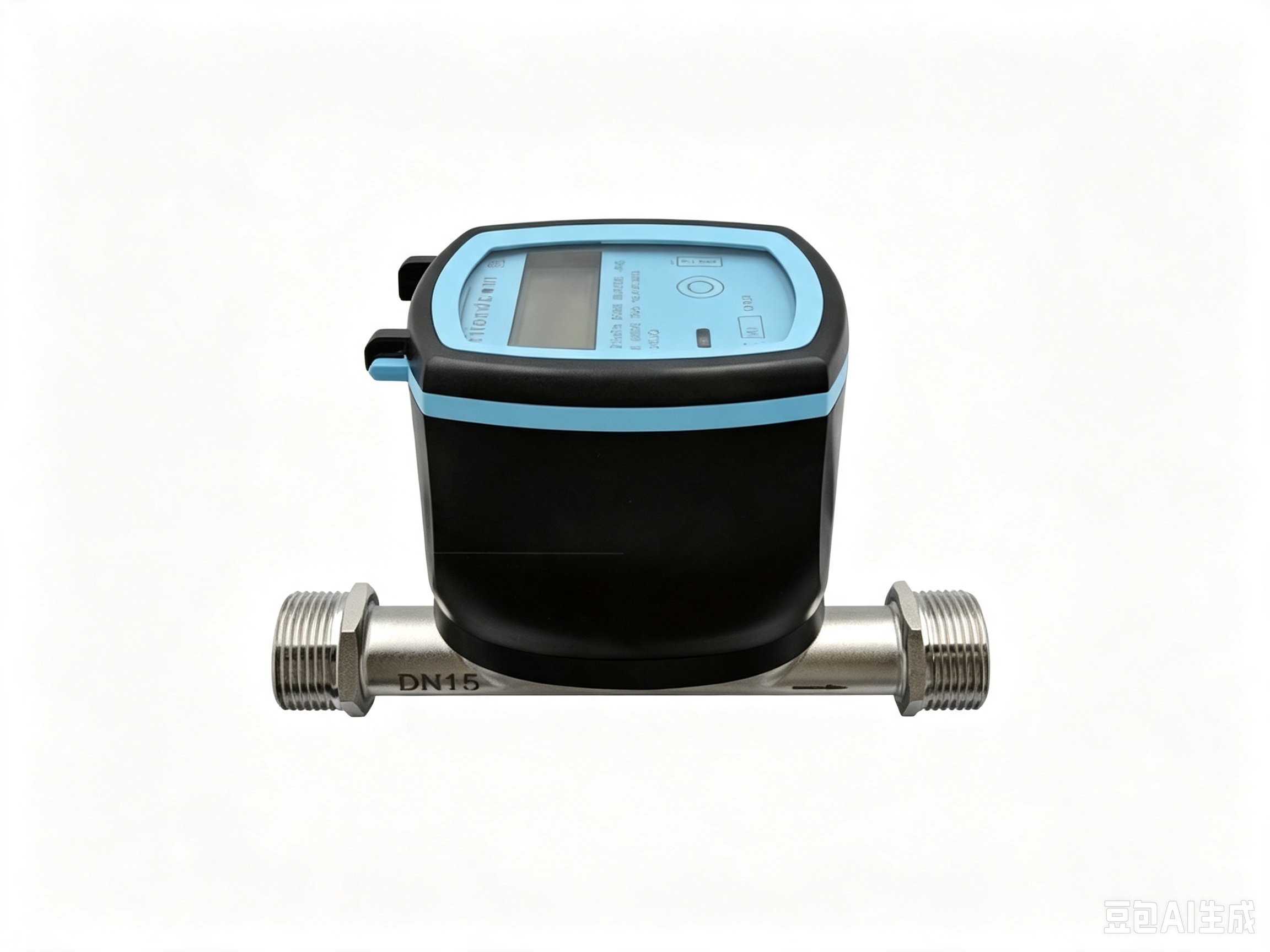

General Ultrasonic Water Meter

Overview

It is an ultrasonic water meter under Friendcom’s Ultrasonic Gas Metering Solution product line, available in composite material and brass housing versions with multiple calibers (DN15, DN20, DN25, DN32, DN40, DN50). It adopts mechanical-free ultrasonic flow measurement technology for long-term stable and accurate water flow measurement.

Download

Features

  • 1. Adopt ultrasonic flow measurement, no mechanical internal parts
  • 2. Maintain high stability and measurement accuracy for long-term use
  • 3. Ultra-long battery service life, up to 20 years
  • 4. Multiple communication options: NB-IoT, LoRaWAN & WMBus dual mode
  • 5. High IP68 protection grade
  • 6. Built-in NFC function; optional SMA external antenna interface and pressure sensor
  • 7. Meet Class 2 measurement accuracy standard
Download

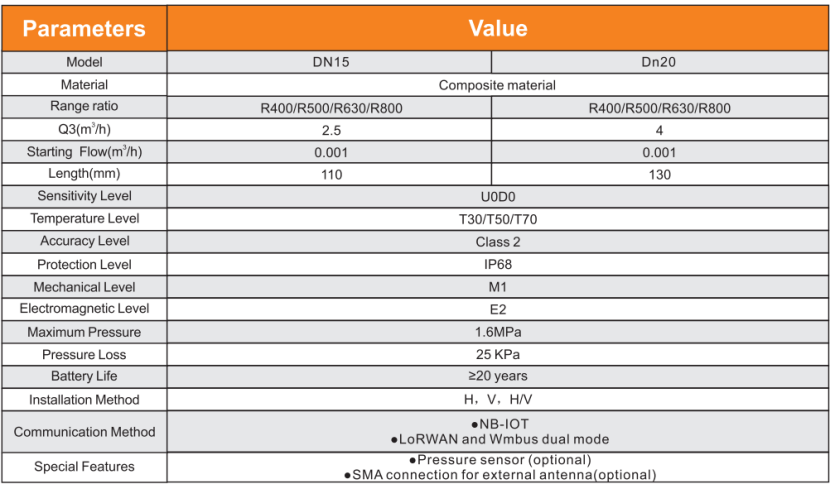

  • Specification Table
