State Grid Collector Type II DCJL13-FC682A

Product overview

DCJL13-FC682A collector is an important part of low-voltage power line carrier meter reading system. The collector adopts advanced hardware platform and takes mature micro power wireless communication technology as data link. It is a collector with advanced technology, stable performance and reliable operation. It is mainly used in automatic data acquisition of low-voltage power system and automatic meter reading of power marketing system.

Functional features

  • The network is highly intelligent, and no manual settings are required at the installation site.
  • The wireless communication rate is as high as 38400bps in the air and 1200bps ~ 9600bps for the local 485 (the system responds quickly and can support large data volume and small and medium power users).
  • Highly intelligent frequency adaptive mechanism.
  • Support any electric energy meter with RS485 interface, including ordinary single-phase meter, remote power-on/off single-phase meter, prepaid meter, multi-rate single-phase meter, ordinary three-phase meter, and three-phase multi-function meter.
  • The wireless network can include small and medium dynamic users around the community.
  • Support multiple zones and multiple concentrators to communicate with the meter at the same time and read the meter at the same time, no need to work in time.
  • Automatic real-time collective copy, freeze collective copy, real-time transparent copy.
  • Automatic broadcast time calibration function.
  • Broadcast freezing and automatically copy the frozen amount, and accurately calculate the line loss.
  • System self-diagnosis function.
  • Anti-lightning protection.

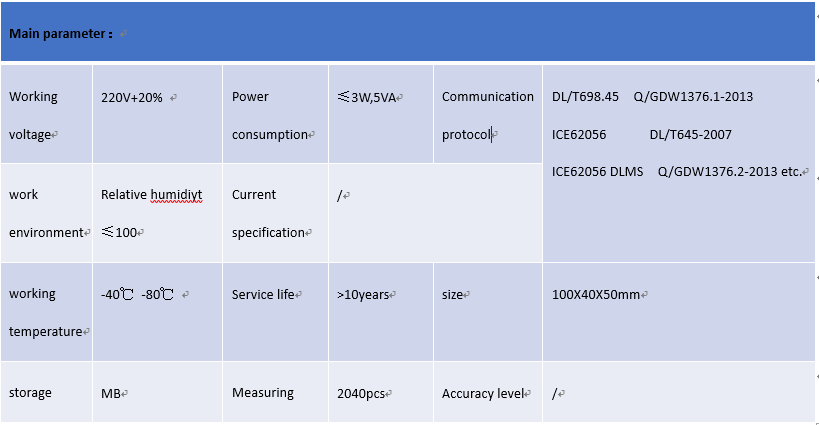

  • Technical parameterView details
