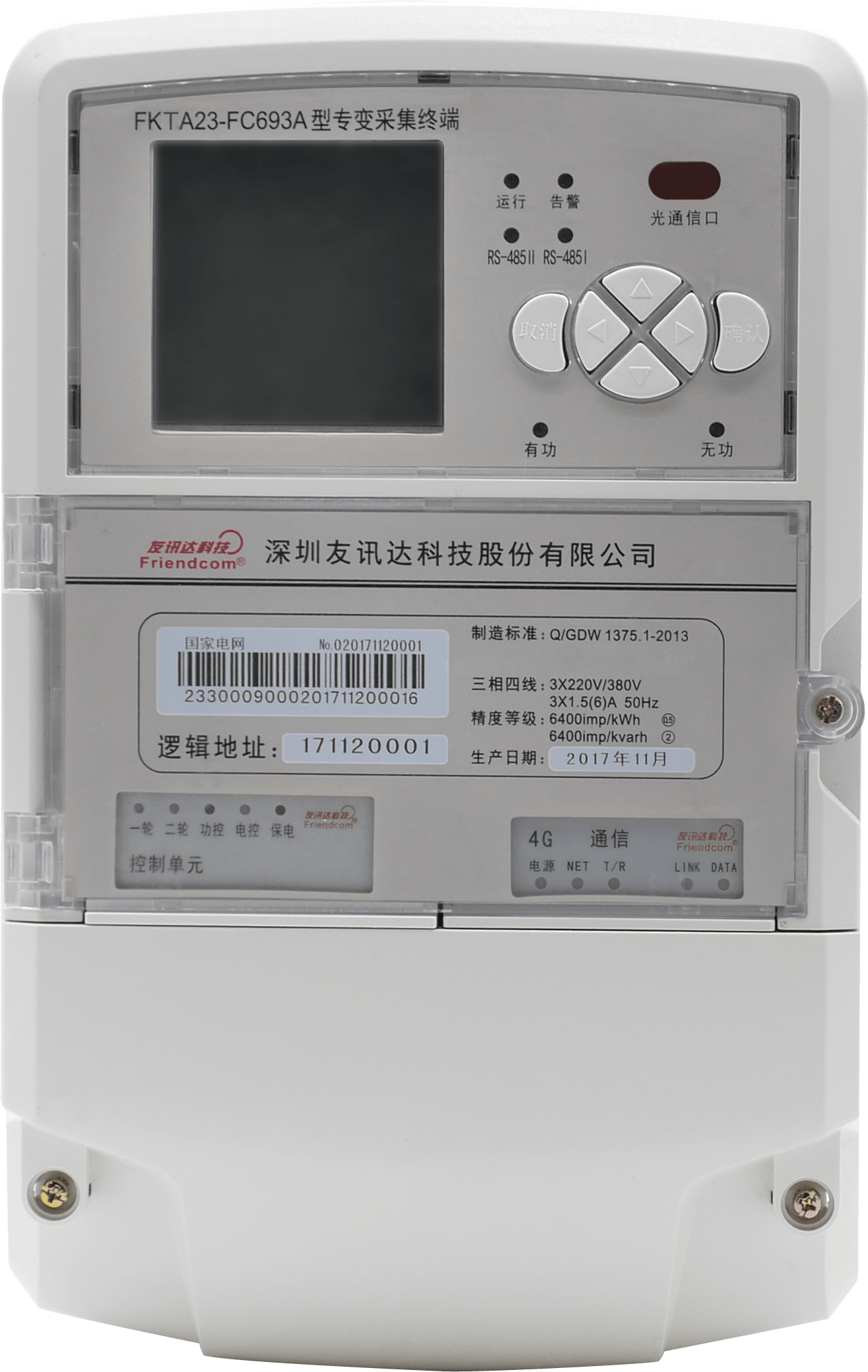

State Grid Type III Special Transformer Acquisition Terminal FKTA23-FC693A

Product overview

FKTA23-FC693A special transformer acquisition terminal is mainly designed for large users and industrial and commercial customers to collect and manage electricity consumption information. It uses a 32-bit embedded microprocessor ARM as the core and integrates modern mobile communication technology, computer technology, and power measurement technology Realize the functions of electric energy meter information collection and storage, power load and electric energy monitoring, and management and transmission of collected data. The technical conditions and functions of the special transformer terminal meet the requirements of "Q/GDW 374.1 Technical Specification for Electricity User Information Acquisition System", "Q/GDW 375.1 Type Specification for Electricity User Information Acquisition System" | "Q/GDW 376.1 Electricity User The relevant provisions of the Communication Protocol of the Electric Information Collection System.
It is widely applicable to power load management system, providing reliable technical means for customer service, power consumption audit, orderly power consumption, peak power consumption, safe power consumption, and alleviating power consumption. It is a product with a high cost performance.

Functional features

  • The operating system with independent intellectual property rights has high reliability and flexibility, and can be expanded and optimized according to user needs.
  • Wider working voltage, industrial-grade wide-range switching power supply working voltage can reach AC127-500V.
  • Wide temperature LCD display screen, wider temperature range, extreme working temperature can reach -40 ℃ -80 ℃.
  • Low standby power consumption, the active power in non-communication state does not exceed 8W, and the apparent power does not exceed 10VA.
  • Network lock function: Intelligently select the network at the inter-provincial border to prevent possible roaming status and failure to go online.
  • Technical parameterView details

    Technical standard:

    1. "Q/GDW 374.1 Technical Specification for Electricity User Information Acquisition System",
    2. "Q/GDW 375.1 Power User Electricity Information Collection System Type  Specification"
    3. "Q/GDW 376.1 Communication Protocol of Power User Electricity Information Collection System"

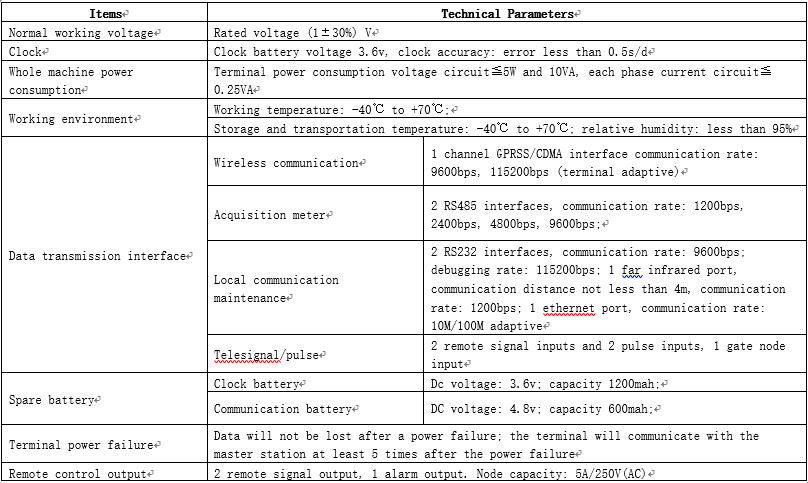

    Technical index:
