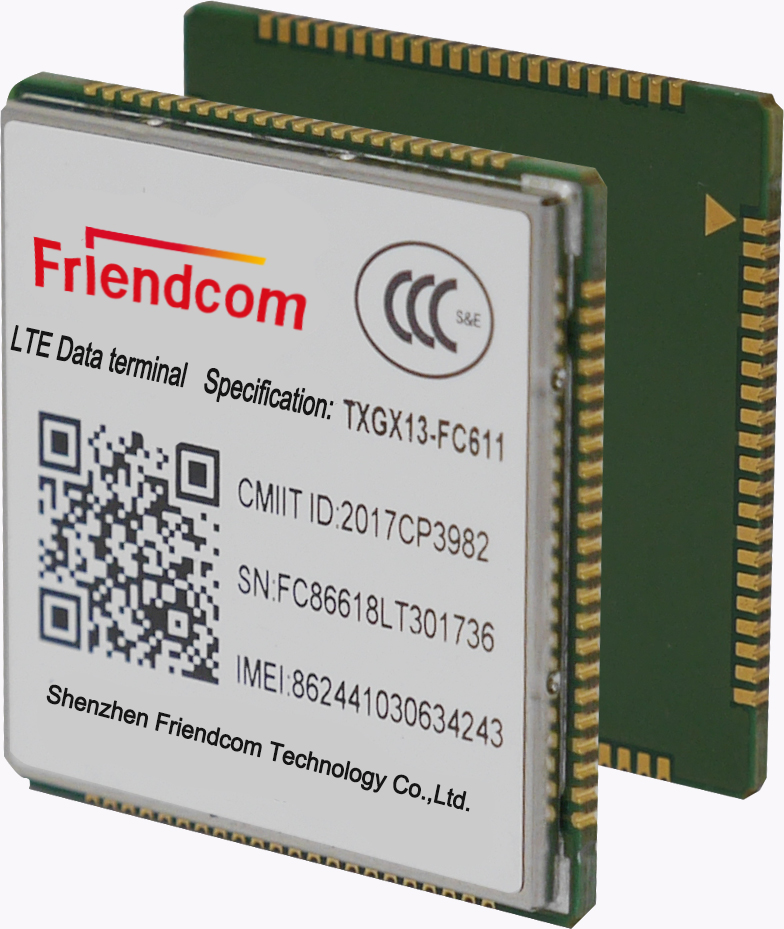

TXGX13-FC611 is a LTE CAT4 communication module launched by Friendcom. It supports multi-band LTE-TDD / LTE-FDD / HSPA + / TD-SCDMA / EVDO and dual-band GSM / GPRS / EDGE, using LTE 3GPP Rel. 10 technology, supports the maximum downlink rate of 150Mbps and the maximum uplink rate of 50Mbps.
TXGX13-FC611 has powerful expansion capabilities, rich interfaces (UART, USB2.0, ADC, I2C, GPIOs, etc.), built-in rich network protocols (TCP / UDP / FTP / FTPS / HTTP / HTTPS / SMTP /NTP and MMS, etc.), supporting multiple operating systems and software functions, greatly expanding the application of TXGX13-FC-611 in the M2M field.
General characteristics
Working frequency:
-Quad-Band TDD-LTE: B38/B39/B40/B41
-Qual-Band FDD-LTE: B1/B3/B5/B8
-Dual-Band TD-SCDMA: B34/B39
-Dual-Band UMTS/HSDPA/HSPA+: B1/B8
-CDMA 1X/EVDO: BC0
-GSM/GPRS/EDGE: 900/1800
LTE Version: 3GPP Release 10
AT command control: 3GPP TS27.007
Power supply voltage: 3.3V~4.3V, typical value: 3.8V
Working temperature: -40°C ~ +85°C
Working humidity: 5%~95% RH, no-condensing
Module Size: 30mm ×30mm ×2.9 mm
Packaging method: LCC
GNSS positioning function: GLONASS, Standalone, A-GPS, GPSoneXTR
Data transmission specification:
LTE TDD
- Uplink up to 35Mbps
- Downlink up to 130Mbps
LTE FDD
- Uplink up to 50Mbps
- Downlink up to 150Mbps
TD-SCDMA
- Uplink up to 2.2Mbps
- Downlink up to 4.2Mbps
DC-HSPA+
- Uplink up to 5.76Mbps
- Downlink up to 42Mbps
CDMA
- Uplink up to 1.8Mbps
- Downlink up to 3.1Mbps
GPRS
- Uplink up to 85.6 Kbps
- Downlink up to 107Kbps
Other features
USB Driver for Microsoft Windows
USB Driver for Linux 2.6 or newer version
USB Driver for Android
Firmware update via USB
TCP/UDP/PPP/ FTP(S)/HTTP(S)
NTP/PING/QMI/NITZ/CMUX/SMTP(S) /DNS/MMS
Interface
USB2.0
UART × 2
SIM card 1.8V/3.0V
GPIO × 2
ADC × 2
PCM × 1
RF Main antenna, GNSS antenna
