Three-phase Electronic Payment Control Smart Energy Meter DTSK1789S-Z

Product overview

DTSK1789-Z/J three-phase payment control smart energy meter has the functions of active and reactive time-sharing rate electric energy metering, data processing, real-time monitoring, automatic control, and information interaction. It is mainly used in power plants, large users, distribution transformers, station transformers, and various power data measurement and measurement of various enterprises and institutions. It uses RS485, power line carrier, micro-power wireless and other scenarios for data transmission.

Resource download12 Online Service

Functional features

  • Use a dedicated metering chip to measure two-way active and four-quadrant reactive energy.
  • Accurately measure the real-time parameters of the power grid such as phase separation and total active power, reactive power, apparent power, power factor, voltage, and current.
  • The main components adopt high-quality special components specially designed for electronic energy meters.
  • The RS485 communication interface adopts independent power supply and has anti-static and surge protection circuits.
  • Adopt an ultra-high precision real-time clock with high stability, low power consumption and real-time temperature compensation.
  • The shell adopts modular design, solid structure, flame retardant, anti-aging, good sealing performance, and expandable functions.
Resource download1 Online Service

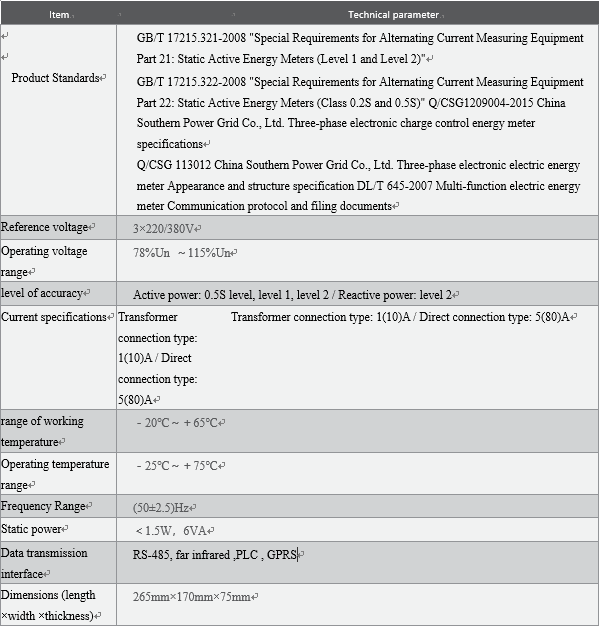

  • Technical parameterView details
