Three-phase Three-wire/Four-wire Smart Energy Meter DSZ/DTZ1789

Product overview

DSZ/DTZ1789 three-phase three-wire/four-wire smart energy meter has the functions of active and reactive time-sharing rate electric energy metering, data processing, real-time monitoring, automatic control, and information interaction. It can support three-phase three-wire and three-phase four-wire systems, and is suitable for power plants, substations, and various enterprises and institutions that require high reliability and high stability of electric energy measurement.

Functional features

  • Use a dedicated metering chip to measure two-way active and four-quadrant reactive energy.
  • Accurately measure the real-time parameters of the power grid such as phase separation and total active power, reactive power, apparent power, power factor, voltage, and current.
  • The main components adopt high-quality special components specially designed for electronic energy meters.
  • The RS485 communication interface adopts independent power supply and has anti-static and surge protection circuits.
  • Adopt an ultra-high precision real-time clock with high stability, low power consumption and real-time temperature compensation.
  • The shell adopts modular design, solid structure, flame retardant, anti-aging, good sealing performance, and expandable functions.

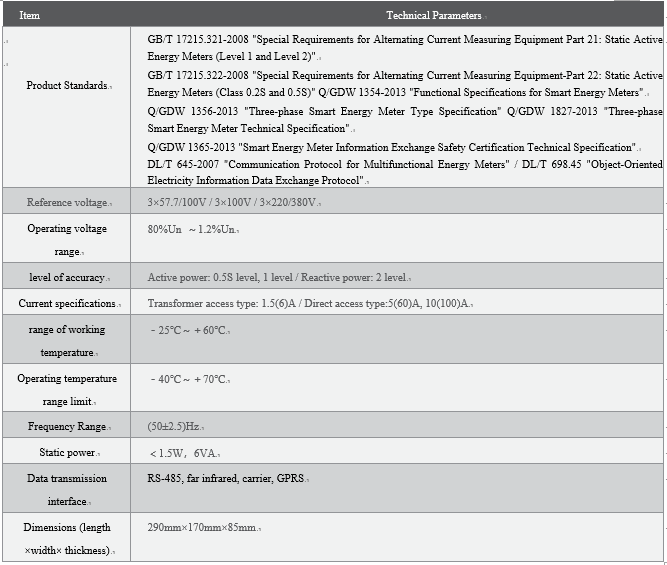

  • Technical parameterView details
