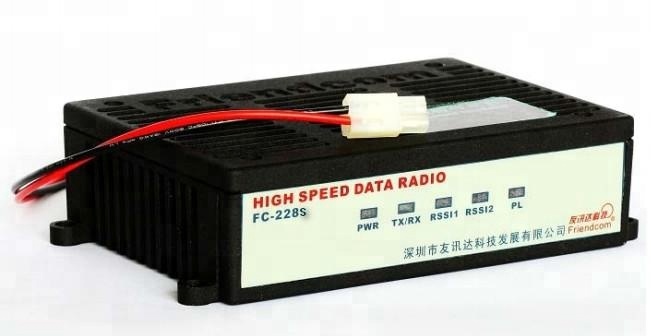

Data Radio FC-228S

Product overview

Frequency Range: 223MHz-235MHz
Operating Channels: 41 channels.
Bandwidth: 12.5 KHz, 15 KHz, 25 KHz, optional
RF Power: 5W, 10W, 15W, 20W, 25W, 30W, optional
Interface: RS 232.
Port Data Rate: 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, optional
RF Data Rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, optional.

Resource download12 Online Service

Functional features

  • Quickset Software: All the set parameters can be read and set via software.
  • Different TX/RX frequency Technology: FC-228S can transmit and receive signals in different frequency respectively. TX/RX channels can exchange.
  • Address Coding: The address code can be modified.
  • Data Protocol: Transparent transmission.
  • Standard: In compliance with the requirements of IC (Canada) and FCC part 90 (USA).
