High-speed Wireless Broadband Dual Mode Type II Collector FC-663C2

The dual-mode data acquisition system is a new type of data acquisition system independently developed by Friendcom. The system adopts dual-mode communication technology of micro-power wireless and power line narrow-band carrier to realize self-organization and self-maintenance functions of data acquisition communication network. Dual-mode heterogeneous wireless communication works at 470MHz ~ 510MHz, which belongs to the micro-power metering frequency band free of application and does not require additional licensing fees or third-party support from the network. Power line carrier communication uses the existing power line as the signal transmission medium without additional wiring. Through the combined use of the two communication modes, it is possible to avoid (two communication methods) respective communication blind spots, provide more and more reliable routing options, thereby improving the stability of network communication. Utilize the characteristics of the two communication methods to achieve speed priority and meter reading experience priority, and provide a high-speed and stable communication method for electricity consumption information collection.

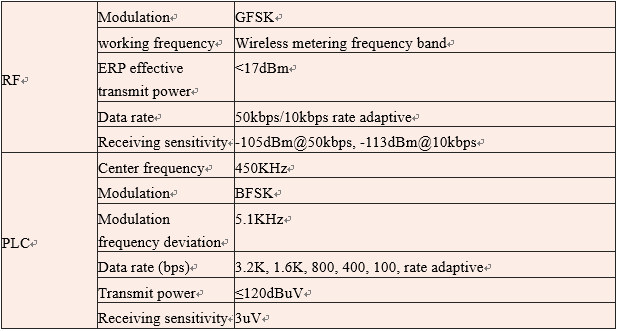

• Application-free working frequency band: Working at 470MHz～510MHz, it belongs to the micro-power metering frequency band without additional authorization fees or third-party support from the network. The wireless uses FSK modulation and supports 10K/50Kbps adaptive rate.
• Microcellular network structure: It improves frequency utilization efficiency and network scalability, and supports multiple networks to work normally at the same time.
• Good communication effect: Broadband technology is adopted, so it has high data transmission sensitivity. Broadband micro-power data transmission adopts standard secondary frequency conversion technology and standard FSK modulation and demodulation method, which has the characteristics of strong anti-interference ability and long transmission distance. It can be applied to industrial environments; the wireless carrier can be switched freely, which solves the problem of wireless islanding and The problem of carrier islanding makes communication without blind spots.
• High network transmission reliability: The system adopts reliable MESH mesh topology, slow frequency hopping, multi-hop transmission, real-time routing update and other technical means to make the network coverage larger and more robust.
• Convenient maintenance: supports mobile access of handheld devices, making system maintenance convenient and simple.
• The carrier adopts FSK spread spectrum modulation and supports five kinds of rate self-adaption: 100/400/800/1600/3200bps
• Automatic meter search: It can automatically search for meters of various protocols connected to the 485 bus of the collector.
• Self-adaptive meter reading rate: Supports automatic matching of meter communication rate without manual setting.
• Extended functions: support phase recognition, station area recognition, zero line reverse connection recognition and other functions.
