The dual-mode data acquisition system is a new type of data acquisition system independently developed by Friendcom. The system adopts dual-mode communication technology of micro-power wireless and power line narrow-band carrier to realize self-organization and self-maintenance functions of data acquisition communication network. Through the combined use of the two communication modes, it is possible to avoid (two communication methods) respective communication blind spots, provide more and more reliable routing options, thereby improving the stability of network communication. Utilize the characteristics of the two communication methods to achieve speed priority and meter reading experience priority, and provide a high-speed and stable communication method for electricity consumption information collection.
Power parameters:
The concentrator supplies power to the FC-626NJ module through +12VI and GND,
Idle mode: the maximum current is 30mA;
Receiving mode: the maximum current is 40mA;
Transmitting mode: The maximum current is 120mA.
Working frequency:
FC-626NJ works in 32 channel groups, each with 2 frequency points.

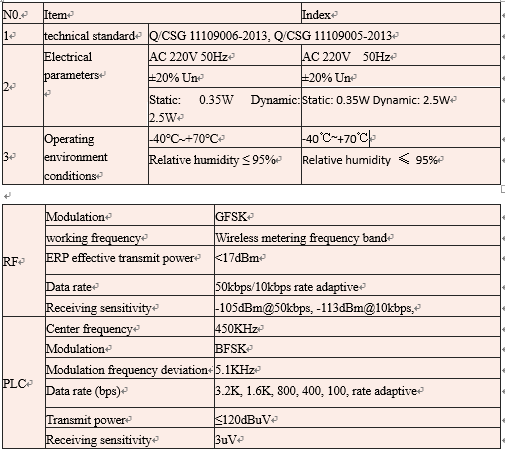

The main parameters:
