Collection Terminal Public Network Line Channel Simulation Intelligent Detection System FC-861

Product overview

The acquisition terminal public network line channel simulation intelligent detection system can be used for laboratory inspection and testing of remote communication three-phase meters, concentrators, and special transformer terminals. It collects GPRS, CDMA, 3G, 4G signal indicators for the terminal uplink channel communication and evaluates the uplink The signal quality of channel communication, qualitative and quantitative analysis, and communication service test.

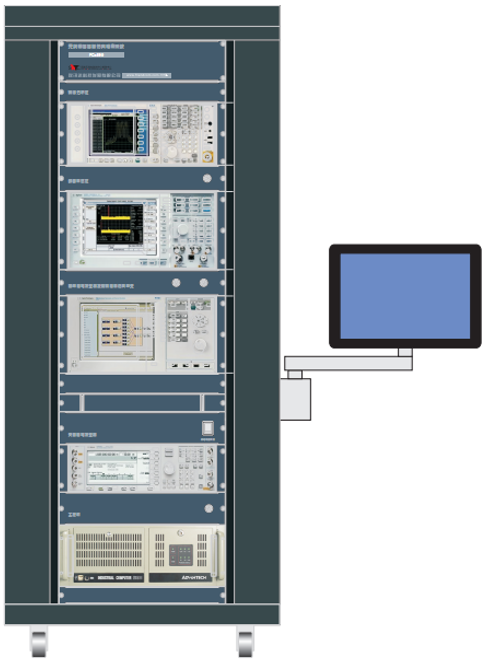

The detection device is composed of a control software unit, a detection software unit, a power supply control unit, a connection unit, an electric drive unit, an analog base station unit, a comprehensive test instrument, and a wireless shielding unit.

Functional features

  • The technical characteristics of the simulation intelligent detection system for the online channel of the collection terminal public network are as follows:
  •  The detection device adopts modular design, easy to install, flexible, easy to maintain, small in size, and flexible to move. Each unit adopts modular design, which is convenient for later upgrade and maintenance, and improves the comprehensive performance of the detection device.
  •  Establish a complete service channel by simulating the base station, which can carry out multiple communication service tests;
  •  The signal shielding room adopts electric transmission technology, which is controlled by PLC, can be controlled by software or started by one button, and completes the loading and removal of equipment, with a high degree of automation.
  •  The technical standards of the signal shielding room meet the technical requirements of the National Non-Commissioned Committee, and it is a standard measuring equipment.
  •  The integrated analyzer and signal simulator of Agilent, a world-class testing equipment supplier, can be used to perform high-precision qualitative and quantitative analysis of the public Internet channel signal, which truly reflects the signal quality.
  •  The testing software has a friendly interface, customers can customize their own testing schemes according to their needs, and the level of automated testing is high.
  •  It plays an important role in monitoring the quality of remote communication modules of terminal manufacturers and the formulation of technical standards for remote communication modules.
  •  Using black box testing technology, focusing on signal quality and service testing, with high compatibility, it can test various collection terminals from different manufacturers.
  • Technical ParametersView details

    Shielding box: automatic control,
    Working frequency:100MHz~3GHz;
    Shielding performance:≥70dBm。

    Cabinet:800m*800mm*2000mm

    Comprehensive analyzer: Aeroflex company standard instrument IFR2945B
