Cascade-CM Ultrasonic Water Meter

Product overview

Friendcom Cascade-CM, a ultrasonic water meter with the unique pat-ented design. Friendcom offers a complete ultrasonic water meter solution, with a range ratio up to R1000. The water meter is rated at IP68 and with a high resistance to hydraulic shock and magnetic interference. The meter body is composite material.

Resource download12 Online Service

Functional features

  • Features
  • Ultrasonic flow measurement without mechanical components
  • High stability and accuracy in long term measurement
  • WMbus and LoRaWAN mode or NB-IoT can be integrated in the meter
  • The meter support NFC and infrared communication which leads to easy field maintenance Separate energy circuit for metrology and communication
  • The maximum range ratio up to R1000
  • The compact size is easy to install in confined space
  • Long battery life up to 20 years
  • Ultra-low starting flow rate: 1 l/h
  • Bidirectional measurement
  • Optional
  • Pressure sensor
  • SMA connection for external antenna
Resource download1 Online Service

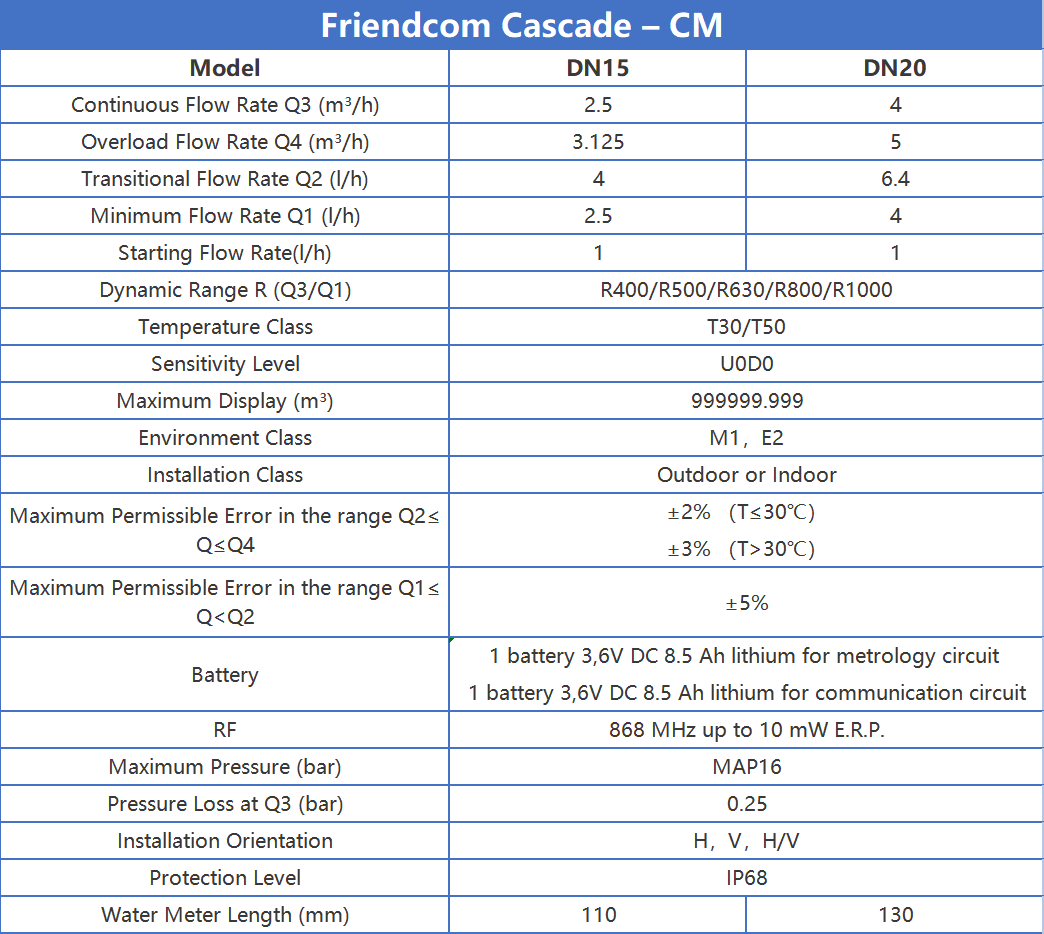

  • Technical SpecificationsView details
