PULSE915-LRW

Product overview

PULSE915-LRW is an external pulse acquisition and wireless data transmission
terminal. It is mainly used for data acquisition of single-pulse or double pulse of
equipment, and use LoRaWAN technology to implement active data reporting.
PULSE915-LRW supports two kinds of pulse signal output sensors of Hall and reed
switch. That makes it to be used with any pulse emiting device (water, gas, electricity, etc.).

Functional features

  • Long range wireless data transmission.
  • Support active sensor (Hall) and passive sensor(reed switch).
  • Multi-band support, EU433, CN470, EU868, US915, AU915, IN865, etc.
  • Configurable report interval.
  • Pre-installed long-life batiery and built-in antenna.
  • UART serial port or air wireless configuration.
  • UART firmware upgrade or FOTA.
  • Batiery power detection and optional automatic power reporting.
  • Average life 10 years*.
  • IP67 waterproof rating.
  • * Lifetime depends from the device location and reporting interval.

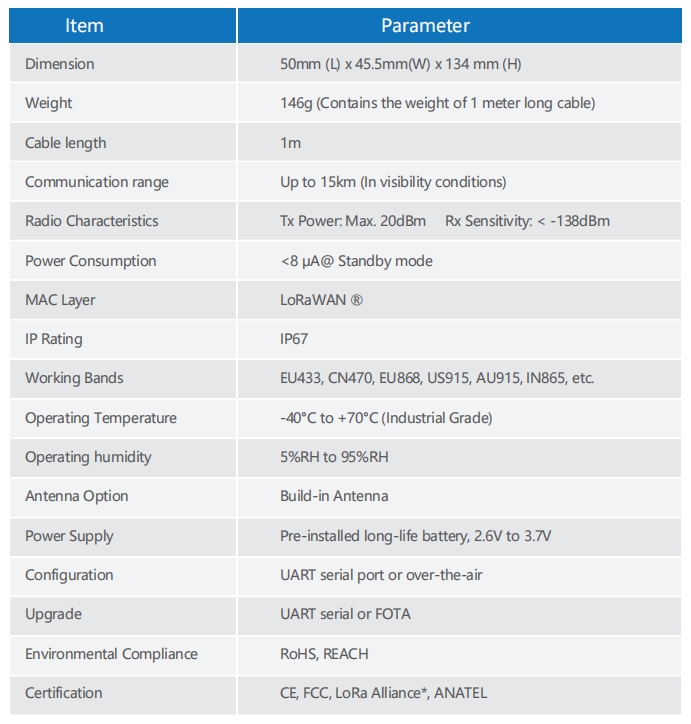

  • SpecificationsView details
