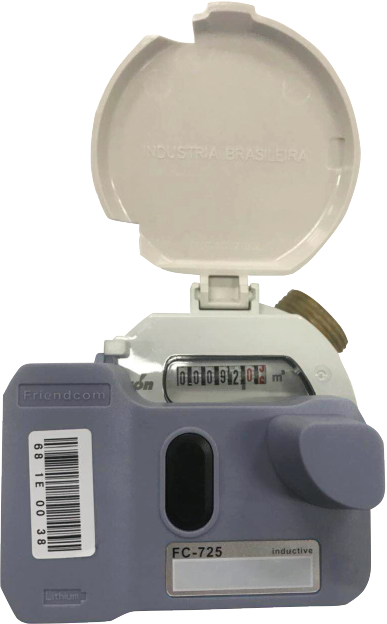

Inductive Water Meter

Product overview

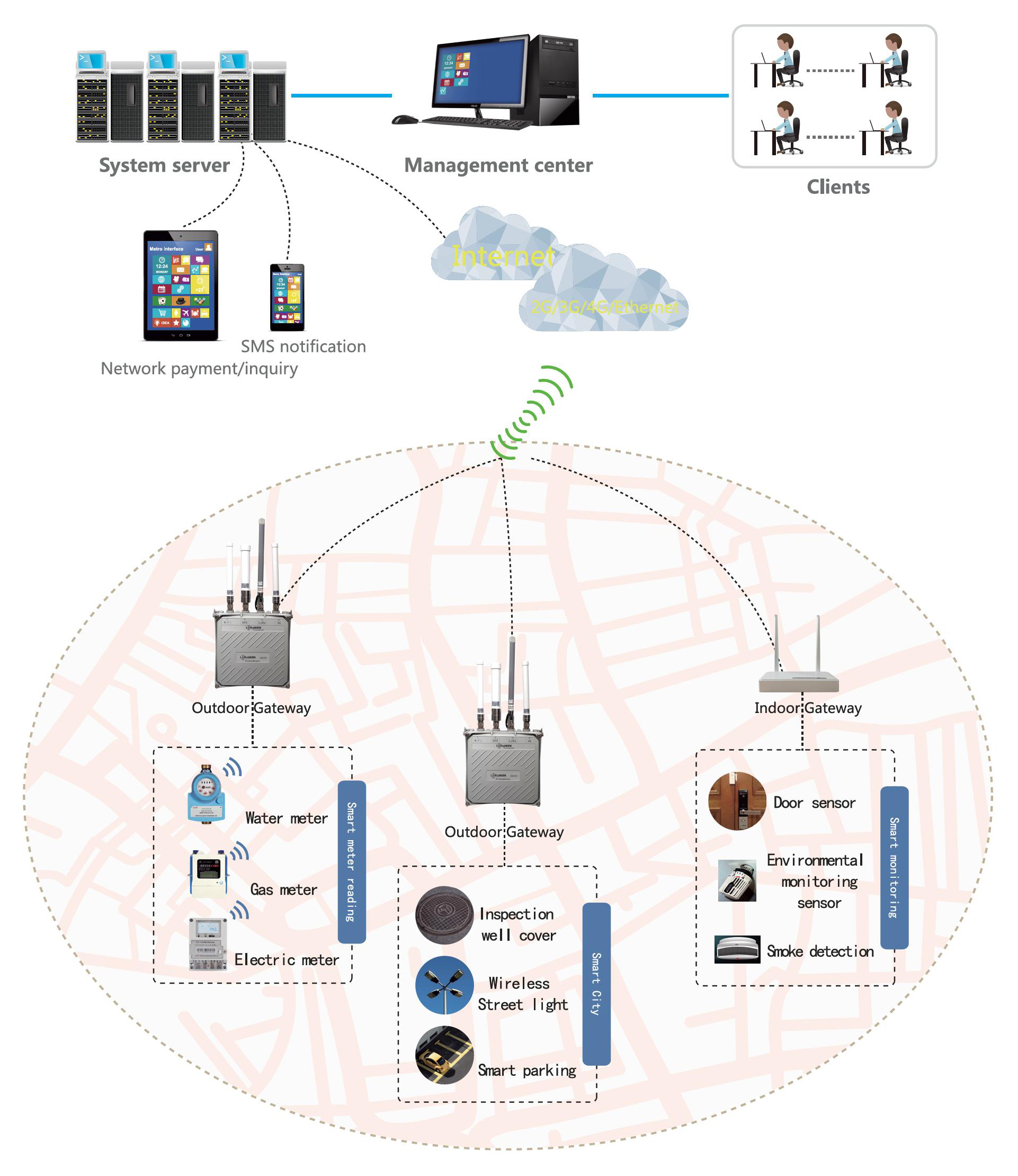

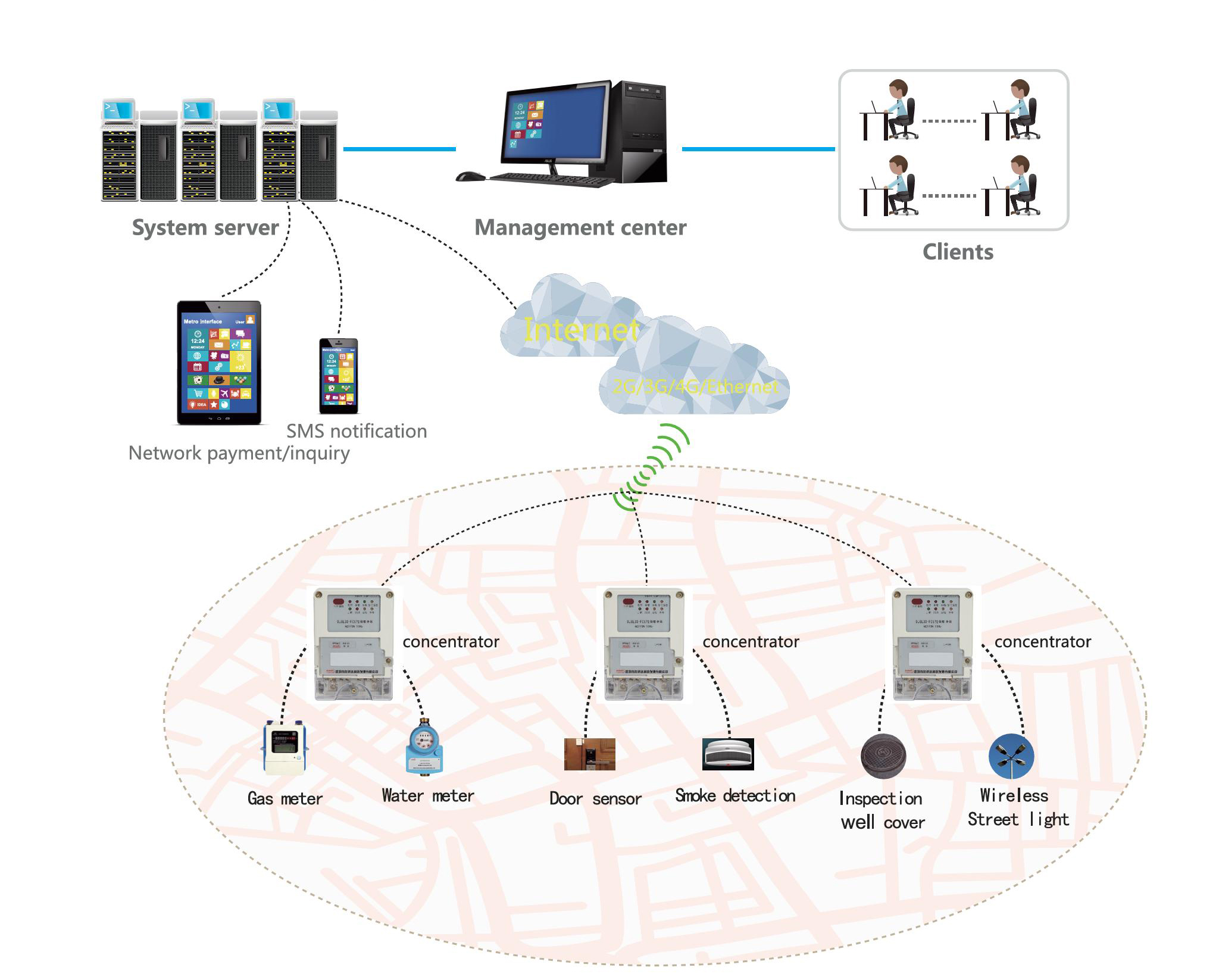

The product uses non-magnetic sensor technology for data conversion, accurate measurement, and has wireless low-power self-organizing network communication meter reading function. It forms a wireless self-organizing network automatic meter reading system with meter reading equipment PDA, concentrator and management software, which can realize real-time monitoring of outdoor meter reading and meter reading status, real-time reading and centralized management of the system, so as to achieve the purpose of high efficiency and energy saving.

Functional features

  • Initial value of measurement
  • -The initial value of the measurement can be set, and the starting value of the module measurement is set to the base meter mechanical display when installing on-site
  • Alarm indication
  • -The module has alarm indications such as anti-dismantling, system voltage is too low, etc.
  • Pulse weight
  • -Support three configuration:1 L / Pulse、10 L / Pulse and 100 L / Pulse
  • Firmware upgrade
  • -The product is reserved for over-the-air upgrade functions and supports functional changes during the sample delivery phase
  • Base meter adaptability
  • -Suitable for (water and gas meters with 105° iron dial) and similar base meters
  • Communication distance
  • -Four-level three-hop network covering a distance of 2000 meters in diameter
  • Waterproof performance
  • -IP68
